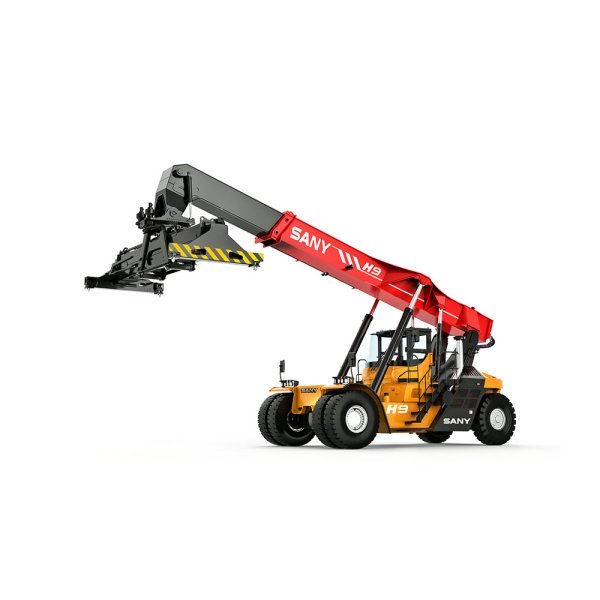

SANY H9

Reachstacker

H9 is the product name that identifies the new range of Sany reachstackers.  Two rear mounted cylinders use the downward gravitational forces to charge nitrogen-accumulators which, in turn, provide extra power over and above the available engine power for the next lift. Following arduous field trials over an exhaustive period, it is found the H9 delivers a 20% fuel saving over an identical machine without the ERS.

However, whilst fuel saving is important, the extra available power means that the main lift cylinder diameters can be reduced resulting in greater visibility and faster lift speeds. H9 therefore is less expensive to run and is 15% more productive than machines without an energy recovery system.

Description

About SANY H9

“H9” technology is initially available for model size 4531. The benefit to you: Machinery-related costs per container are 15 % lower than those of a standard reach stacker; the savings are achieved by increasing the number of containers moved and reducing fuel consumption.

The technology:
Energy recovery through additional lifting cylinders on the boom and large hydraulic accumulators
SANY lightweight grab on the boom, with corresponding reduction in counterweight
Package of measures within the travel drive to further increase efficiency
Approx. 15% savings in machine costs per container (including fuel, maintenance, machinery depreciation)
Hydropneumatic system for boom energy recovery with toplift spreader
